Bus LED Module16 pixels height

「 Bus LED Module -16 pixels height」

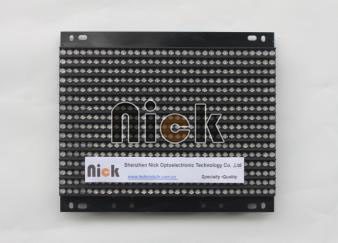

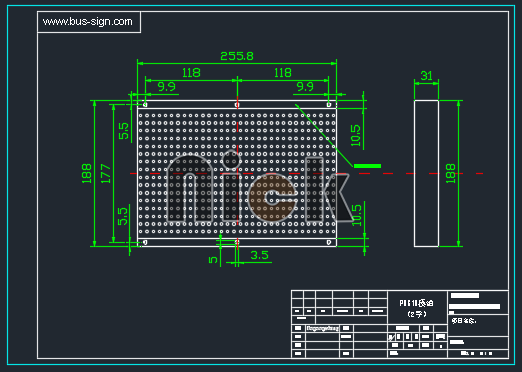

Model	NK-P0810-2Z	Colour	R■/G■/Y■/W□
Size	255.8x188x31mm	Brightness	2000cd/M2
Voltage	DC5V	Power	12W
Pixel	32x16	Pitch	8x10mm

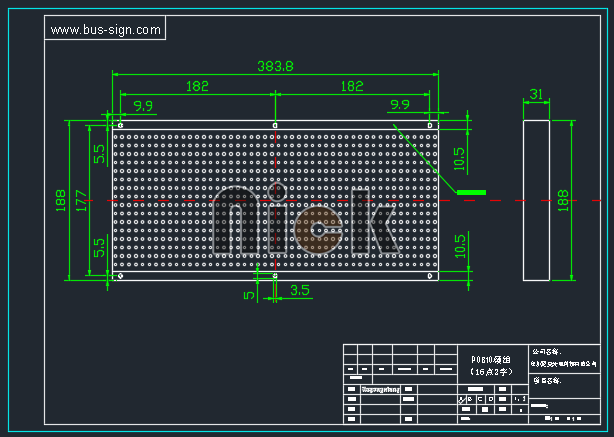

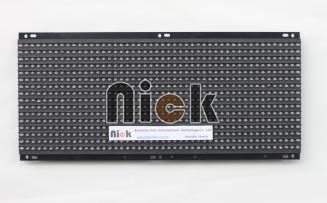

Model	NK-P0810-3Z	Colour	R■/G■/Y■/W□
Size	383.8x188x31mm	Brightness	2000cd/M2
Voltage	DC5V	Power	18W
Pixel	48x16	Pitch	8x10mm

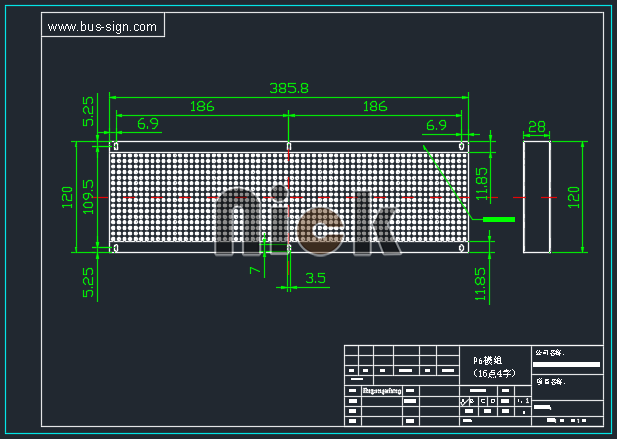

Model	NK-P6(F4.8)-2ZF	Colour	R■/G■/Y■/W□
Size	385.8x120x28mm	Brightness	800cd/M2
Voltage	DC5V	Power	20W
Pixel	64x16	Pitch	6mm

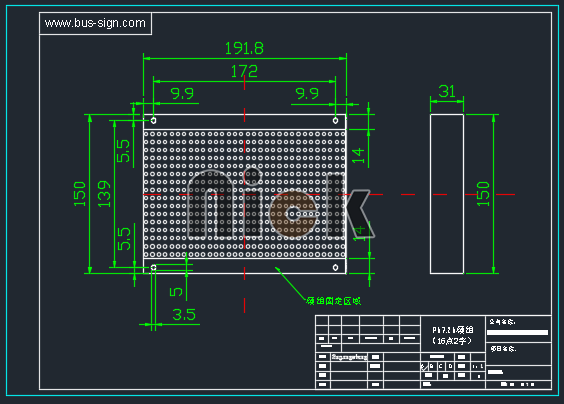

Model	NK-P67.62-2Z	Colour	R■/G■/Y■/W□
Size	191.8x150x31mm	Brightness	4000cd/M2
Voltage	DC5V	Power	14W
Pixel	32x16	Pitch	6x7.62mm

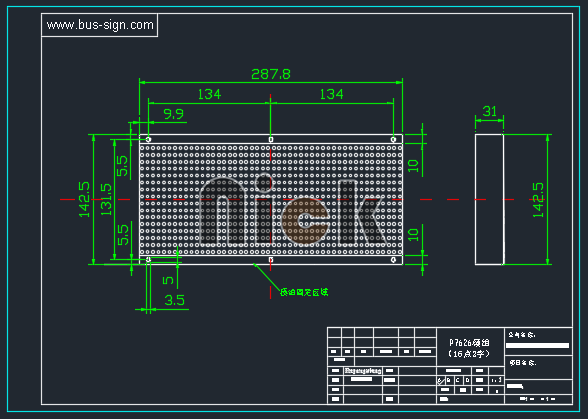

Model	NK-P67.62-3Z	Colour	R■/G■/Y■/W□
Size	287.8x142.5x31mm	Brightness	4000cd/M2
Voltage	DC5V	Power	18W
Pixel	48x16	Pitch	6x7.62mm

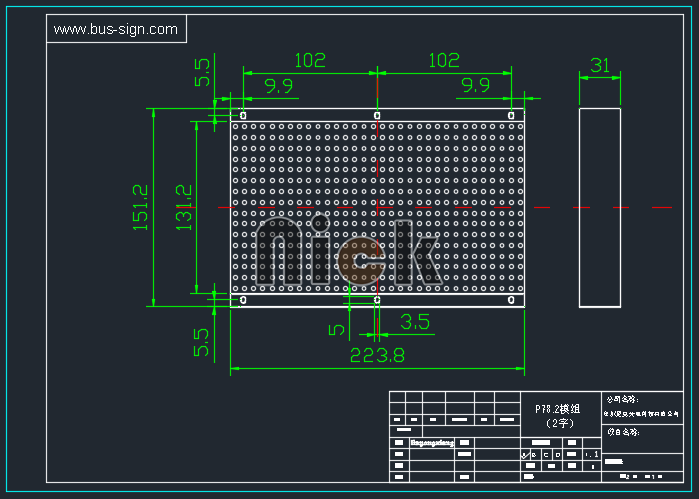

Model	NK-P782-2Z	Colour	R■/G■/Y■/W□
Size	223.8x151.2x31mm	Brightness	3500cd/M2
Voltage	DC5V	Power	12W
Pixel	32x16	Pitch	7x8.2mm

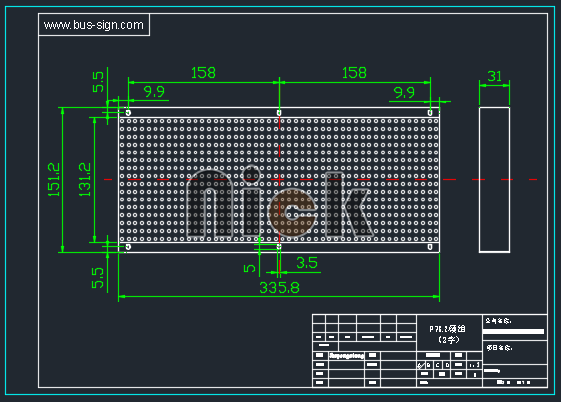

Model	NK-P782-3Z	Colour	R■/G■/Y■/W□
Size	335.8x151.2x31mm	Brightness	3500cd/M2
Voltage	DC5V	Power	18W
Pixel	48x16	Pitch	7x8.2mm

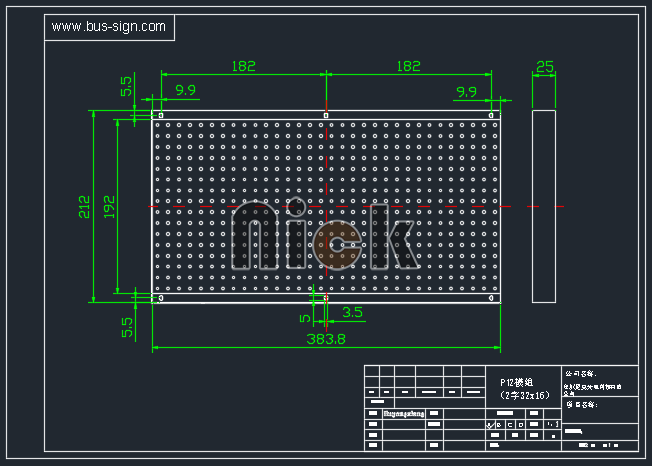

Model	NK-P12-2Z16	Colour	R■/G■/Y■/W□
Size	383.8x212x25mm	Brightness	4000cd/M2
Voltage	DC5V	Power	46W
Pixel	32x16	Pitch	12mm

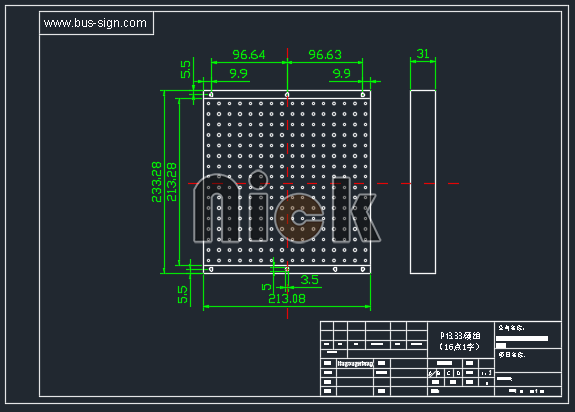

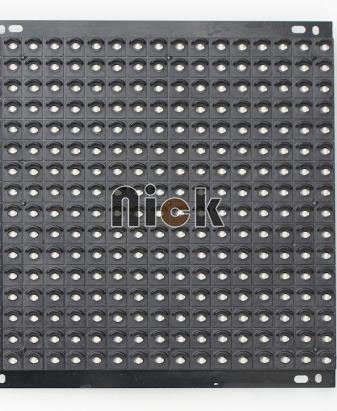

Model	NK-P13.33-1Z	Colour	R■/G■/Y■/W□
Size	213.08x233.28x31mm	Brightness	3300cd/M2
Voltage	DC5V	Power	23W
Pixel	16x16	Pitch	13.33mm

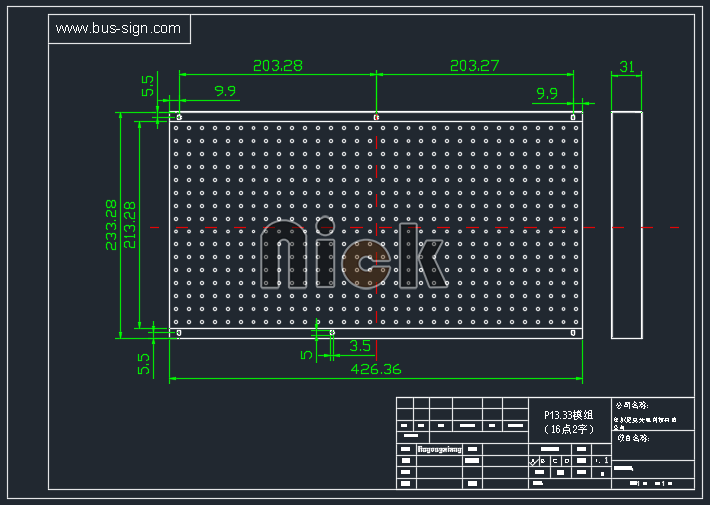

Model	NK-P13.33-2Z	Colour	R■/G■/Y■/W□
Size	426.36x233.28x31mm	Brightness	3300cd/M2
Voltage	DC5V	Power	46W
Pixel	32x16	Pitch	13.33mm
